Copper terminals are crucial in modern electrical systems. Their high conductivity, corrosion resistance, and ease of use make them essential for safe and efficient wiring in industrial, commercial, and residential applications.
What is a Copper Terminal?
A copper terminal is a conductive component made primarily of high-purity copper. It is designed to connect electrical wires securely, ensuring stable current transmission.

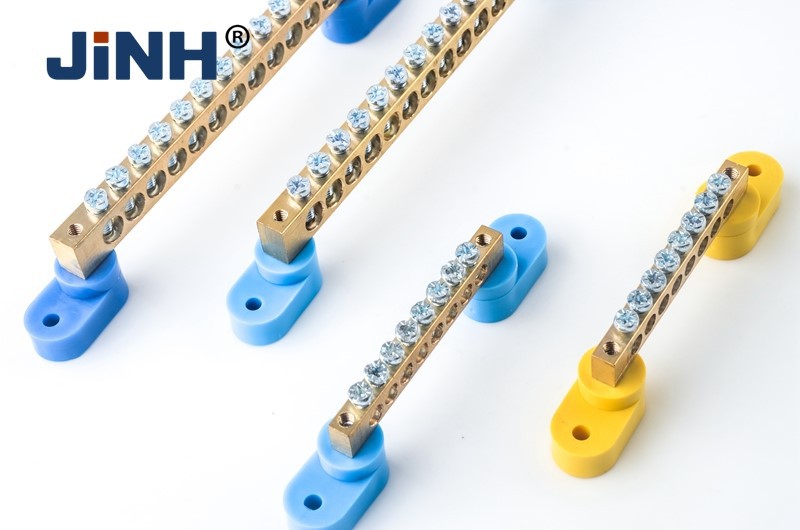

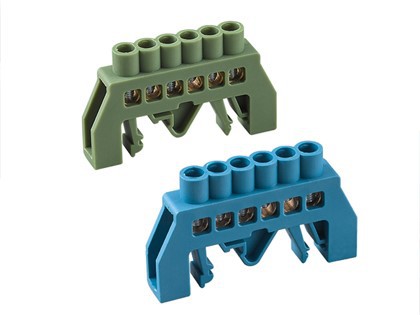

Copper Terminal Blocks are modular blocks that hold multiple copper terminals in a single unit. These blocks streamline the wiring process by organizing connections in a safe and efficient manner. The models shown, such as JHT6 8*12 and JHS03 series, illustrate a lot of choices, from 4P to 24P terminals with screw-type locking.
Use a wire stripper to remove the insulation from the wire, ensuring the copper core is clean and intact. The stripping length should match the terminal specifications, typically around 10-12mm.
Make sure the wire is fully seated in the terminal. Avoid leaving any exposed copper outside the sleeve.
Once the copper terminal is connected to the wire, insert it into the designated slot on the Copper Terminal Block. Most blocks use a screw or spring-clamp mechanism for secure installation.
Perform a continuity test or voltage test through the terminal block to make it stable connection.
Excellent Electrical Conductivity: Ensures minimal resistance and heat generation.
Corrosion Resistance: Tin plating protects against oxidation and environmental damage.
High Mechanical Strength: Suitable for high-current applications.
Easy Maintenance: Replacing or adding wires is simple using screw or snap-in designs.
Safety Compliance: Most copper terminals comply with UL94 V-0 flame resistance standards and are suitable for harsh environments.
Copper Terminal Blocks are widely used in:
The JINH Copper Terminal series offers flexible options for installation size and cross-section, ranging from 6×9 mm² to 8×12 mm², to cater to different current loads and wiring needs.
Using copper terminals and Copper Terminal Blocks correctly ensures reliable, safe, and efficient electrical connections. With a variety of configurations, high-quality materials, and easy installation, they are ideal for complex wiring systems in demanding environments. If one is looking to optimize their electrical setup, choosing the right copper terminal solution is key to long-term performance and safety.
