Quick Details

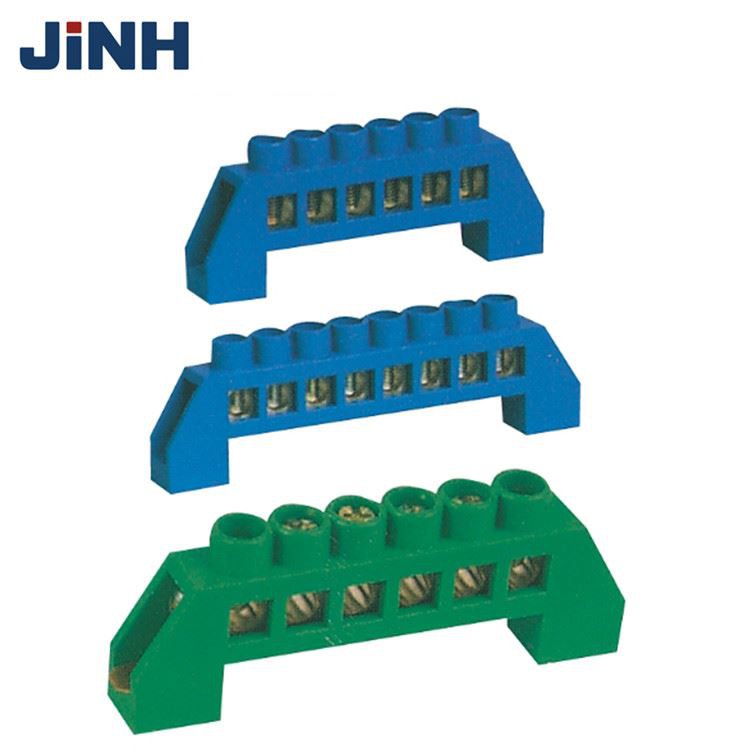

Name: Copper terminal interface block
Item name: JHT8-4P
Type: Screw
Application: Wire Connecting
Conductor material: Brass
Holder material: PA
Color: Blue/ Green/ Customized

What’s the special of our copper terminal block?

1.Made of high quality brass material, durable.

2.High strength, high hardness, good wear resistance and chemical corrosion resistance.

3.It is easy to wire, not easy to oxidize, and has a large capacity.

4.Specially used in distribution box, distribution cabinet, high voltage cabinet, etc.

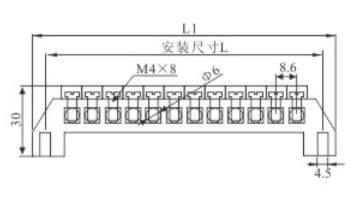

JHT8-0609 SERIES
Product Structure	Way	Installation Dimension (L)	Dimension (L1)	Sectioncross of brass (MM²)
	4	48.2	59.2 X 11.2	6 X 9
	6	65.4	76.4 X 11.2	6 X 9
	8	82.6	93.6 X 11.2	6 X 9
	10	99.8	110.8 X 11.2	6 X 9
	12	117	128 X 11.2	6 X 9

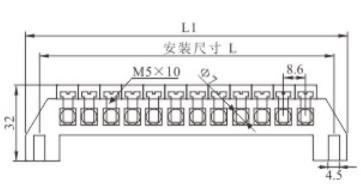

JHT8-0812 SERIES
Product Structure	Way	Installation Dimension (L)	Dimension (L1)	Sectioncross of brass (MM²)
	4	48.2	59.2 X 12.2	8 X 12
	6	65.4	76.4 X 12.2	8 X 12
	8	82.6	93.6 X 12.2	8 X 12
	10	99.8	110.8 X 12.2	8 X 12
	12	117	128 X 12.2	8 X 12

FAQ

1.Q: Is the price of green same as blue?

A.Green is more expensive than blue, cause green with ground strip.

2. Q : Do you made them by your factory or your sister company?

A: We made them by our factory.

3. Q : Could you send me more details? And drawing?

A: Of course, please let us know your email, or any contact app. We will send you.

4. Q: Could you show me your special packing for reference?

A: Of course, we can send you some examples.
