JHPTX6-2.5 Din Rail Distribution Block

Name: JHPTX6-2.5 Din Rail Distribution Block

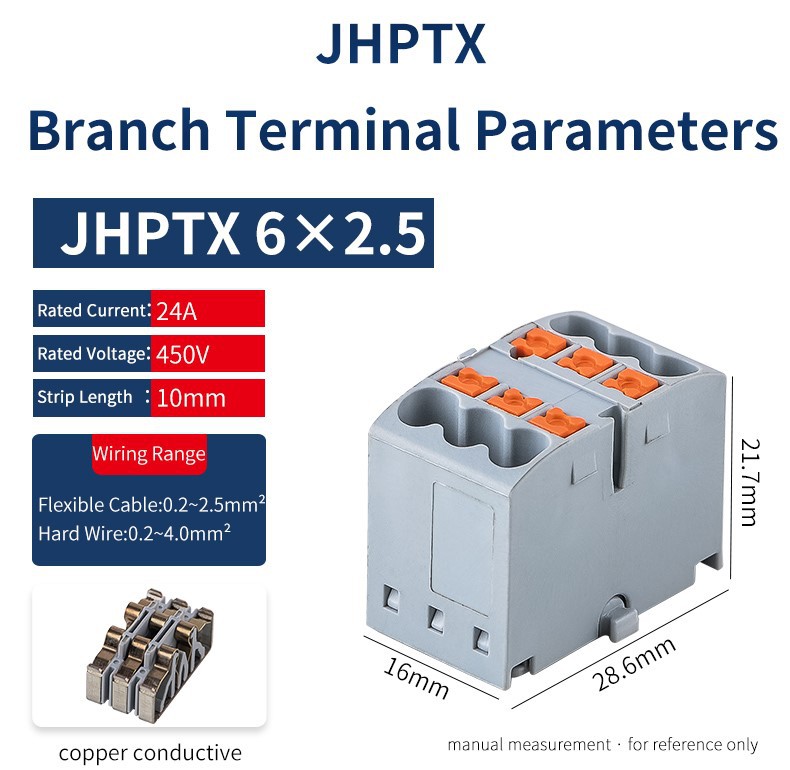

Model Number	JHPTX6-2.5
Hard Wire	0.2-4mm²
Flexible Cable	0.2-2.5mm²
Current	24A
Voltage	450V
Mounting Type	Din rail
Dimension	28.6*16*21.7mm



Din Rail Distribution Blocks are essential components used in electrical systems to distribute power and organize wiring in a compact and efficient manner.

Definition: A Din Rail Distribution Block is a modular device mounted on a standard DIN rail, which is used to distribute electrical power from a single input to multiple outputs.

Usage: These blocks are commonly found in industrial control panels, automation systems, and other electrical installations where organized and efficient power distribution is required.





Type	Current Input Port	Current Output Port	Voltage	PIN	Metal	Dimensions(mm)
JHPTX 6/6X2.5	41A	24A	690V	6	PA	28.6*25.6*21.7
JHPTX 6/12X2.5	41A	24A	690V	12	PA	28.6*41*21.7
JHPTX 6/18X2.5	41A	24A	690V	18	PA	28.6*56.5*21.7



Type	Current	Voltage	PIN	Metal	Dimensions(mm)
JHPTX 6X2.5	24A	450V	6	PA	28.6*16* 21.7
JHPTX 12X2.5	24A	450V	12	PA	28.6*31.5*21.7
JHPTX 18X2.5	24A	450V	18	PA	28.6*46.9*21.7























FAQ

Q : Why your company's price is competitive and quality seems rather good?

A： Because we have been manufacturing more than 20 years, we know what price and a quality buyer can sell well in the market. The wholesaler have suitable profits.

Q : What is your packing?

A:Our packing normally is 100pcs/bag and 6000pcs a carton.If you have requirement on the packing ,we can custom-made for you,just please let me know.

Q:What certificate do your products have?

A: Our products have passed ISO9001, TUV, CQC, ROHS, and CE.Some countries also have their specific requirements for certification, such as MIQ in Italy, so if you need special certification, you can also tell me, and we will evaluate whether we can apply for you.
