How to use a power distribution terminal block

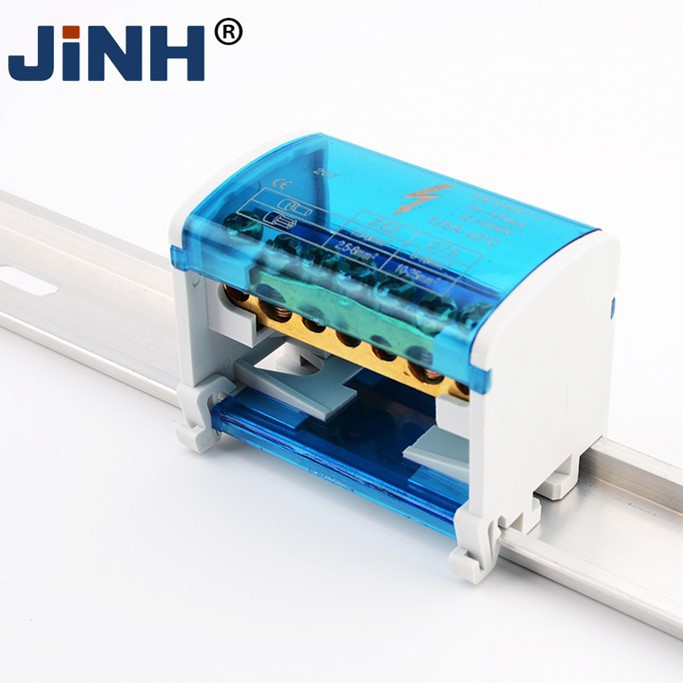

Distribution terminal blocks are modular connection devices used to consolidate and distribute electrical power. These blocks accept one main input and channel it to several branch circuits. The internal brass guide bars ensure stable conductivity, while nickel plating offers excellent resistance to oxidation and corrosion. A transparent PC cover plate protects internal components while allowing visibility, and the PA66 shell provides flame-retardant and durable housing.

Using distribution terminal blocks is straightforward and efficient:

• Strip the wire ends according to the specified length (usually 10–14mm).
• Insert the main power wire into the input terminal hole and tighten the screw to secure it.
• Connect branch wires to the output terminals by inserting each stripped wire and tightening the corresponding screws.
• Check all connections for firmness, then close the cover plate.
• Power on the system to ensure proper load distribution.

This setup ensures quick installation, reduced wiring clutter, and minimal risk of short circuits.

Distribution terminal blocks are widely used across various sectors. In industrial environments, they help manage complex wiring in machinery and control cabinets. For commercial buildings, they are important in electrical panels and lighting control systems. They also serve key roles in solar power setups, HVAC systems, and automation equipment, where stable power distribution is vital.

• Time-Saving Wiring: Centralized wiring design simplifies installation and troubleshooting.
• High Safety: Flame-retardant housing and insulated cover reduce electrical hazards.
• Durable and Long-Lasting: Corrosion-resistant materials extend product life.
• Versatility: Suitable for a wide range of wire sizes and current ratings.
• Space-Efficient: Compact design fits easily into confined spaces like panels or boxes.

A power distribution terminal block is an essential component in modern electrical systems. It serves as a secure and organized way to distribute electrical power from a single input to multiple outputs. Distribution terminal blocks are commonly used in control panels, distribution boxes, and electrical cabinets for both industrial and residential applications.

By choosing high-quality distribution terminal blocks from JINH, you make sure of steady performance in demanding electrical applications. With strong conductivity, durable materials, and user-friendly assembly, these terminal blocks are an ideal option for efficient power distribution.
